Guest checkout flow and failure-path checklist template

Draw the successful purchase first. Add a recovery route at each failed decision, and distinguish a confirmed decline from an uncertain result before offering retry.

Use this template →See the example ↓

No account needed · Opens as your own editable page

Preview the guest checkout flow and failure-path checklist

View full-size preview ↗

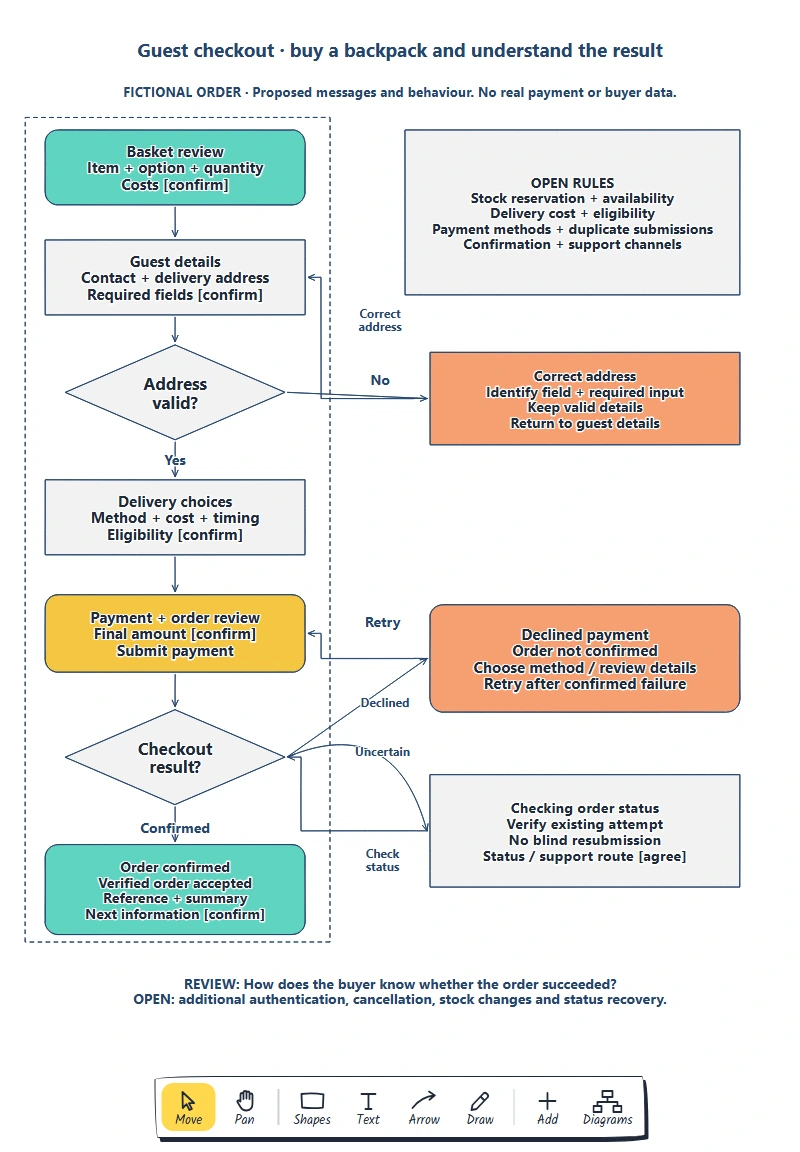

Guest checkout flow and failure-path checklist example showing define the starting point, task and confirmed end state., give each decision explicit outcomes., explain address correction and return routes.
Everything in this example is editable. Replace the labels, move the shapes and adapt the layout to your work.

How to use this template

  1. Define the buying task and checkout boundaries

    The happy path hides payment and address failures.

  2. Draw basket, details, delivery and payment

    Map checkout errors, recovery and order confirmation for team review.

  3. Add address correction and payment retry

    Define evidence for a confirmed order. Give each error a message, action and return route. Separate known failure from unknown outcome. Turn unresolved behaviour into owned decisions and implementation tests.

Questions about this template

Does this need an account?

No. Open and edit your own copy. An account is optional for cloud saving.

Do I need an account to use it?

No. Open the template and edit it in your browser. Your work saves on this device. An account is optional if you want to sync your workspace.

Can I export the finished diagram?

Yes. Use Export in the editor to save a PNG, SVG or PDF, or download an editable .epicdraw backup.
