Drip irrigation layout template

A drip irrigation layout shows how water gets from the source to every plant at the right pressure. This example lays out a market garden system with a rainwater tank, pump, non-return valve, filter, pressure regulator and controller, a 25 mm mainline, three valve zones for salads, fruit and a polytunnel, and drip laterals with emitters along each bed, plus flows and run times per zone.

Use this template →See the example ↓

No account needed · Opens as your own editable page

Preview the drip irrigation layout

View full-size preview ↗

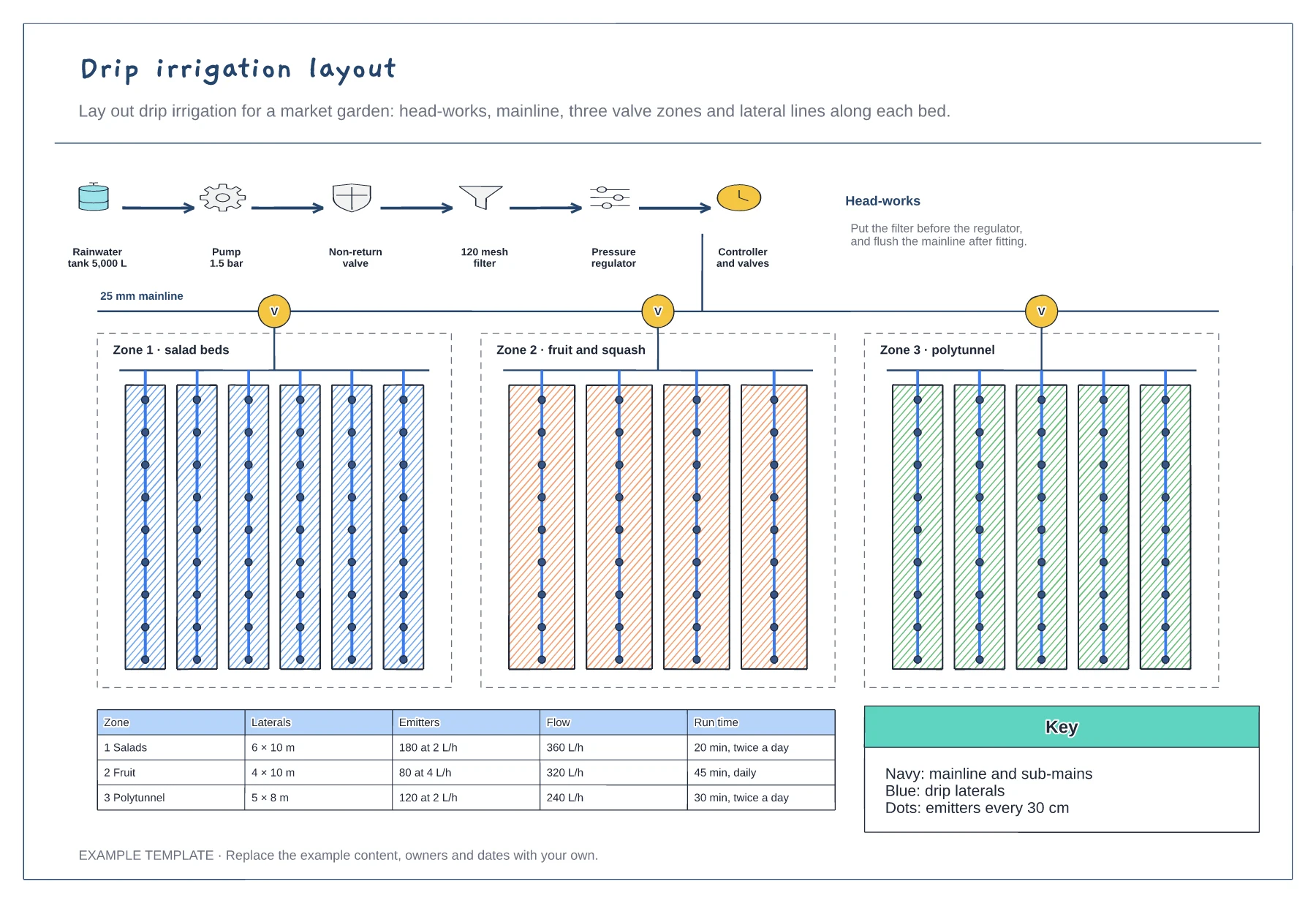

Drip irrigation layout example showing head-works in the right order, mainline, valves and zone sub-mains, laterals, emitters, flow and run times
Everything in this example is editable. Replace the labels, move the shapes and adapt the layout to your work.

How to use this template

  1. Lay out the beds

    Draw the beds and group them into zones that need similar amounts of water.

  2. Size each zone

    Count emitters per zone and multiply by their flow to check each zone stays within what the pump and pipe can supply.

  3. Add the head-works

    Draw the source, pump, backflow protection, filter, regulator and valves in order, then set run times for each zone.

Questions about this template

Can I add a fourth watering zone?

Yes. Copy a valve and its lateral lines, label the new zone and connect it to the mainline, keeping the filter and regulator in the head-works.

Do I need an account to use it?

No. Open the template and edit it in your browser. Your work saves on this device. An account is optional if you want to sync your workspace.

Can I export the finished diagram?

Yes. Use Export in the editor to save a PNG, SVG or PDF, or download an editable .epicdraw backup.
